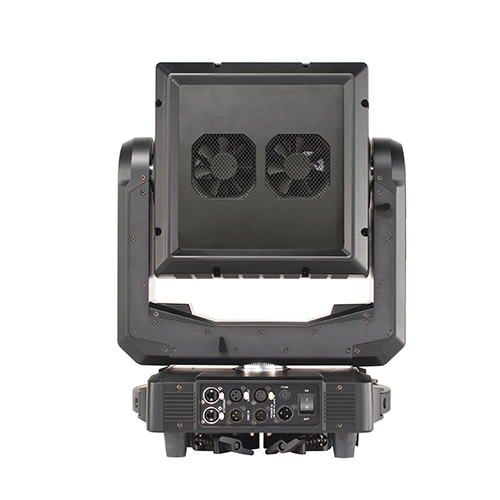

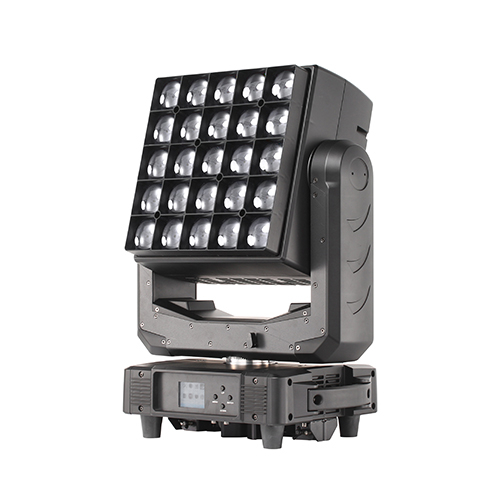

25x40W LED Matrix Moving Head

Availability:
Quantity:
  • DS-56

  • DS

  • DS-56

  • 25x40W 4 IN 1

  • 23.5kg

  • 900W

  • 2 years

  • 25*40W 4IN1 RGBW LED

  • 0-100%

  • 20/24/34/134

  • 120-240V 50-60HZ

  • 3.5°~ 45°

  • IP33

Features & Specifications:

•25x 40W LED 4in1 RGBW ;

•Power Voltage: AC 100-240V, 50/60Hz

•Beam angle: 3.5 ° - 45 °;

•Glass light guide + PMMA high-quality optical lens

•Power Consumption: 900W; Power factor PF≥0.95

•Working temperature: -10 ℃ ~ 45 ℃

•Control Modes: DMX512,

•DMX mode  :20/24/34/134 Chs

•Control Modes: DMX512/mater-Slave/Auto Run/Music/Artnet

•Pan/Tilt: infinite rotation (using photoelectric reset system)

•Tilt: 360 °,accuracy 0.86 ° / step, fine-tuning accuracy: 0.0034 °

•Pan: 540 °, accuracy 2.11 ° / step, fine-tuning accuracy: 0.008 °;

•Display: 180°reversible 2.4-inch TFT color display(Chinese or English)

•Data In/Out socket: 3-pin & 5-pin XLR sockets

•Powercon in/out sockets

•Protection Rating: IP20

•Dimension: 420×376×560mm

•Net Weight: 23.5Kg

•With Foldable Clamps
