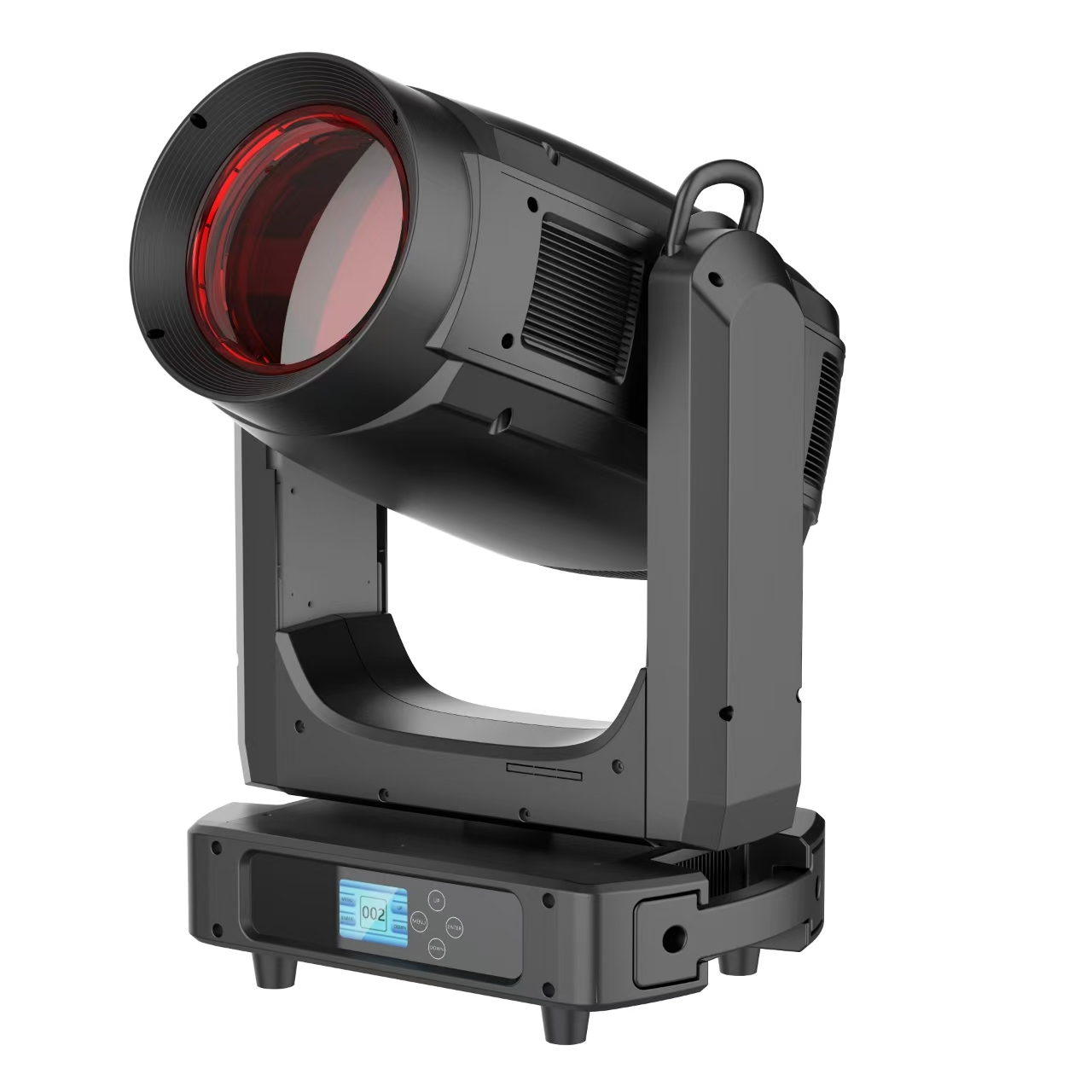

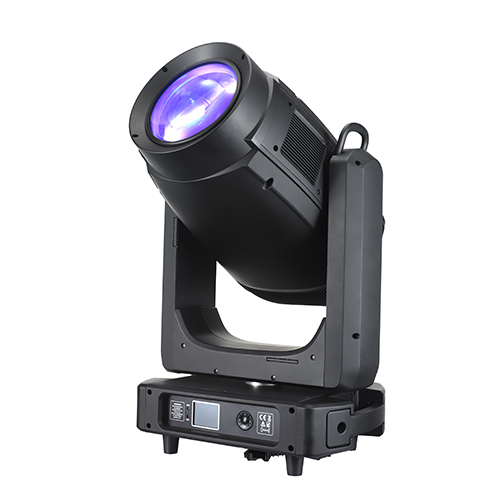

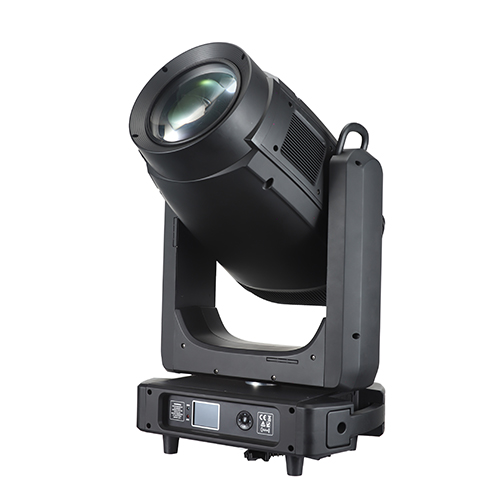

Max 1400W LED Moving Profile Spot

•Light Source: 1200W white LED

•Power Comsuption:1400W

•LED life expectancy: 20,000 hours

•High output mode Ra>70   High CRI mode Ra>90

•Advanced optical system to ensure clear, sharp image quality

•High-efficiency zoom optical system (ratio 1:10)

•Zoom range: 5-50°

•Total lumen output: up to 35,000 lumens

•4-button touch panel   Display: LCD display

•Protocols: DMX512, RDM, Art-Net(optional)

•Wireless is optional

•DMX Protocol modes: 2 modes

•Control channels: 36/46 CHs

•Pan/Tilt Resolution: 16-bit

•Dimmer: 8-bit or 16-bit

•Firmware upgrade via DMX link

•Pan movement: 540° Tilt movement: 270°

•Pan/Tilt lock

•Automatic position correction

•1x rotating gobo wheel with 6 gobos plus open; convenient replacement

‘Slot & Lock’ system for gobo replacement

•1x static gobo wheel with 8 gobos plus open

•1x color wheel with 5 colors plus white

•Linear CMY &CTO

•6 linear prism ,3-facet prism

•Prism rotation and prism plus

•Framing shutters: 4x framing shutters, each individually controllable

•Each shutter blade can block out light completely

•Movement is fast, smooth and precise, with adjustable speed

•Each shutter blade can block out light completely

•Framing module can be rotated at ±45°

•Power supply with electronic auto-ranging

•Input voltage range: 100-240V~ 50/60Hz

•Power consumption: 1400W

•Data In/Out: 3-pin and 5-pin XLR connector

•Gross weight: 46kg

•Net Weight：38kg

•Dimensions:450*450*810mm

•Packing size:90.5*56*45.5cm

•With Foldable Clamps
