DS-609
DS
DS-609

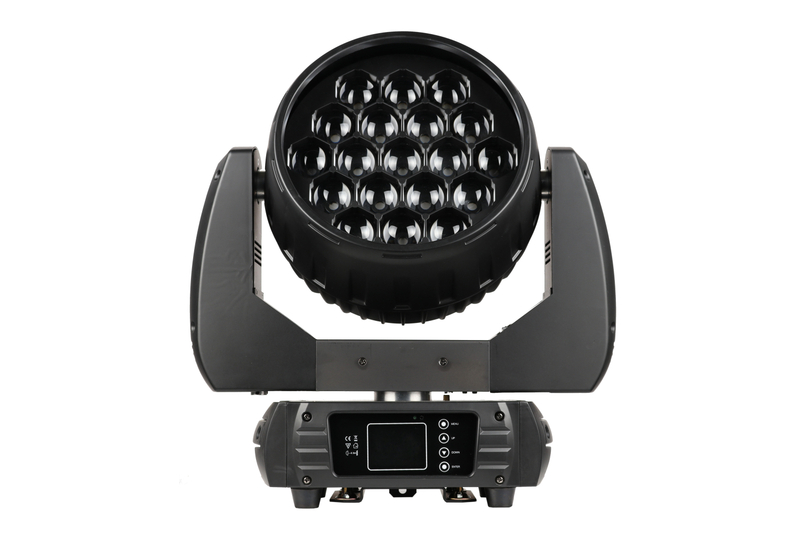

19x40W 4 IN Moving Head
28kg
810W
2 years
Carton or Flightcase
0-100%
20/14/92/98chs
6°-60°
120-240V 50-60Hz
IP22
Features & Specifications:
•19pcs*40W 4-IN-1 RGBW LEDS
•Life span: 50000 hours life span
•Color: RGBW
•6-60°Smooth electronic linear zoom
•Input Voltage:AC90-260V 50/60Hz
•Power Consumption: 810W
•DMX512 master-slave and sound activated or auto operation
•20/14/92/98 DMX channels USITT DMX-512 Dimensions: 514(D)*289(W)*597(H)mm
•Dimensions: 514(D)*289(W)*597(H)mm
•Packing Dimensions:620(D)*395( W )*720(H)mm
•Net Weight:27kg
•Gross Weight:33kg
Features
•Low power consumption
•pixel each color and each led controllable individually
•Color temperature Liner up and down in 2,800-8,000K
•Specific optic lens of highly efficient elements integrated with glass tube
•Even, soft edge and pure color mixing coverage
•Using the three phase motor provide high speed and smooth scan and
eliminate the rotational noise
•Flicker free sources management
•Scan position memory, auto reposition after unexpected movement
•0-100% Smooth linear LED dimmer
•7 built-in default programs for easy operation
•Different Kinds of pre-programmed macro effects with variable speed
•Variable speed strobe effect with 1-25 flashes per second
•Variable pusle and random effects
•Sound control with sensitivity adjustment
•3.2" TFT LCD touch display (320*240pix) with 5 control buttons
•LCD display switch-off automatically after 60 seconds
•DMX signal monitoring indicator available
•Lower noise and efficient FAN cooling system
•Efficient low noise self adjusting fan cooling system
•Constant temperature readout and management function
•Over heat protection management
•Power con IN/ OUT with power switch and fuse
•3-Pin DMX connectors IN/OUT
•DB rating@1M=54.18dB
•With Foldable Clamps
